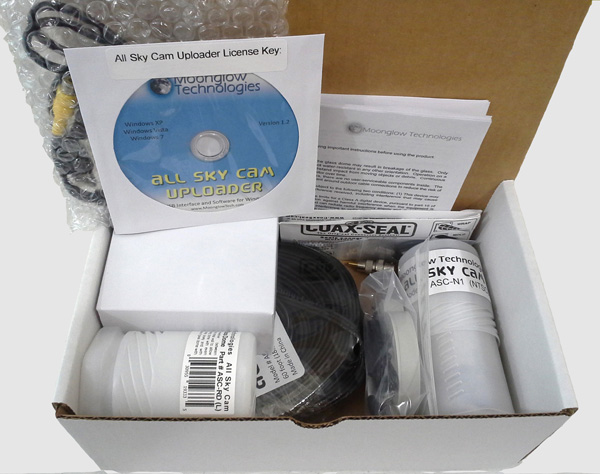

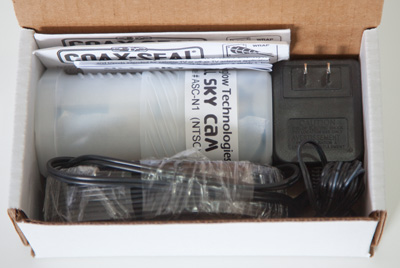

What's In The Box (ASC-N1: NTSC Version)
- Camera with Lens and Glass Dome, with attached cables
- 25 foot (7.6 meter) power/video extension cable
- BNC-RCA adapter (supplied attached to extension cable)
- Power supply (with 120VAC US-style plug)
- 10" Weather sealant strip for cable connections
- User Manual
Specifications (ASC-N1: NTSC version)
| Video system: | NTSC, 60Hz interlaced. |
| Image sensor: | Color 1/3" Sony Super HAD CCD II |
| Lens: | 1.24mm F2.8, 3 elements |
| Field of view: | 190 degrees hemispherical |
| Projection: | circular fisheye |
| Effective pixels across FOV: | 546 x 457 |
| Nighttime binning: | 1x2 skip |
| | |
| Exposure time: | 1/100,000 to 4 seconds, automatic |
| Limiting stellar magnitude: | Approx. 4 (limited by sky brightness) |
| Minimum illumination: | 0.0002 lux (starlight) |
| Signal to noise ratio: | greater than 50dB |
| White balance: | automatic |
| | |
| Power supply: | DC 12V, maximum 120mA |
| Power consumption: | 1.5 watts |
| Power connection: | 2.1x5.5mm female barrel |
| | |
| Housing construction: | clear anodized aluminum |
| Cover: | User-replaceable glass |
| Video connection: | Female BNC or male RCA |
| Cable length: | 12 inches (0.3 m) fixed. 25 foot (7.6 m) removable extension included |
| Included: | Camera with lens, 120VAC power supply, 25' extension cable, BNC-RCA adapter, cable weatherproofing sealant, user manual. |
| | |
| Internet connectivity: | via optional All Sky Cam Uploader for Windows, sold separately. |
| | |
| Camera dimensions: | 2.0" (50mm) diameter x 4.0" (102mm) tall |
| Mounting: | 1 5/8" pole mount, or 1/4-20 screw holes |
| Retail box dimensions: | 7.75" x 4.25" x 3.31" (197mm x 108mm x 84mm) |
| Camera weight: | 0.7 lb (0.3 kg) |
| Shipping weight: | 4 lbs |
| | |
| Origin: | Assembled in U.S.A. with components made in Korea and China. |
| Warranty: | 1 year |
What's In The Box (ASC-P1: PAL Version)
- Camera with Lens and Glass Dome, with attached cables
- 25 foot (7.6 meter) power/video extension cable
- BNC-RCA adapter (supplied attached to extension cable)
- Power supply (100-240VAC 50/60Hz, with Euro, UK, US, and Australian plugs)
- 10" Weather sealant strip for cable connections
- User Manual
Specifications (ASC-P1: PAL version)
| Video system: | PAL, 50Hz interlaced. |
| Image sensor: | Color 1/3" Sony Super HAD CCD II |
| Lens: | 1.24mm F2.8, 3 elements |
| Field of view: | 190 degrees hemispherical |
| Projection: | circular fisheye |
| Effective pixels across FOV: | 534 x 538 |
| Nighttime binning: | 1x2 skip |
| | |
| Exposure time: | 1/100,000 to 5 seconds, automatic |
| Limiting stellar magnitude: | Approx. 4 (limited by sky brightness) |
| Minimum illumination: | 0.0002 lux (starlight) |
| Signal to noise ratio: | greater than 50dB |
| White balance: | automatic |
| | |
| Power supply: | DC 12V, maximum 120mA |
| Power consumption: | 1.5 watts |
| Power connection: | 2.1x5.5mm female barrel |
| | |
| Housing construction: | clear anodized aluminum |
| Cover: | User-replaceable glass |
| Video connection: | Female BNC or male RCA |
| Cable length: | 12 inches (0.3 m) fixed. 25 foot (7.6 m) removable extension included |
| Included: | Camera with lens, 100-240VAC 50/60Hz power supply, 25' extension cable, BNC-RCA adapter, cable weatherproofing sealant, user manual. |
| | |
| Internet connectivity: | via optional All Sky Cam Uploader for Windows, sold separately. |
| | |
| Camera dimensions: | 2.0" (50mm) diameter x 4.0" (102mm) tall |
| Mounting: | 1 5/8" pole mount, or 1/4-20 screw holes |
| Retail box dimensions: | 7.75" x 4.25" x 3.31" (197mm x 108mm x 84mm) |
| Camera weight: | 0.7 lb (0.3 kg) |
| Shipping weight: | 4 lbs |
| | |
| Origin: | Assembled in U.S.A. with components made in Korea and China. |
| Warranty: | 1 year |
Weatherization
The All Sky Camera's interior is completely sealed from the elements and humidity, and contains a clay dessicant (DMF-free) to prevent fogging inside the glass dome.
The sturdy glass dome protects the camera from rain, snow, and moderate hail. Light snow and ice will be melted off by the camera's 1.5 watt internal power consumption. In cold climates during large snowfalls, it may be desirable to brush snow off of the camera to speed the melting process. In summertime, heat generated inside the dome by solar insolation is reduced by the reflective anodized aluminum surface, and removed by conduction through the aluminum housing.
|
